E-ONE is dedicated to providing top-quality emergency vehicles and solutions using the VM8 and E-ONE Select Series. This select series ensures safety and efficiency of fire departments in need of fast delivery and financial savings. With a strong commitment to innovation, sustainability, and customer satisfaction, we strive to be your trusted partner in emergency response. Browse the rapid delivery apparatus options below.

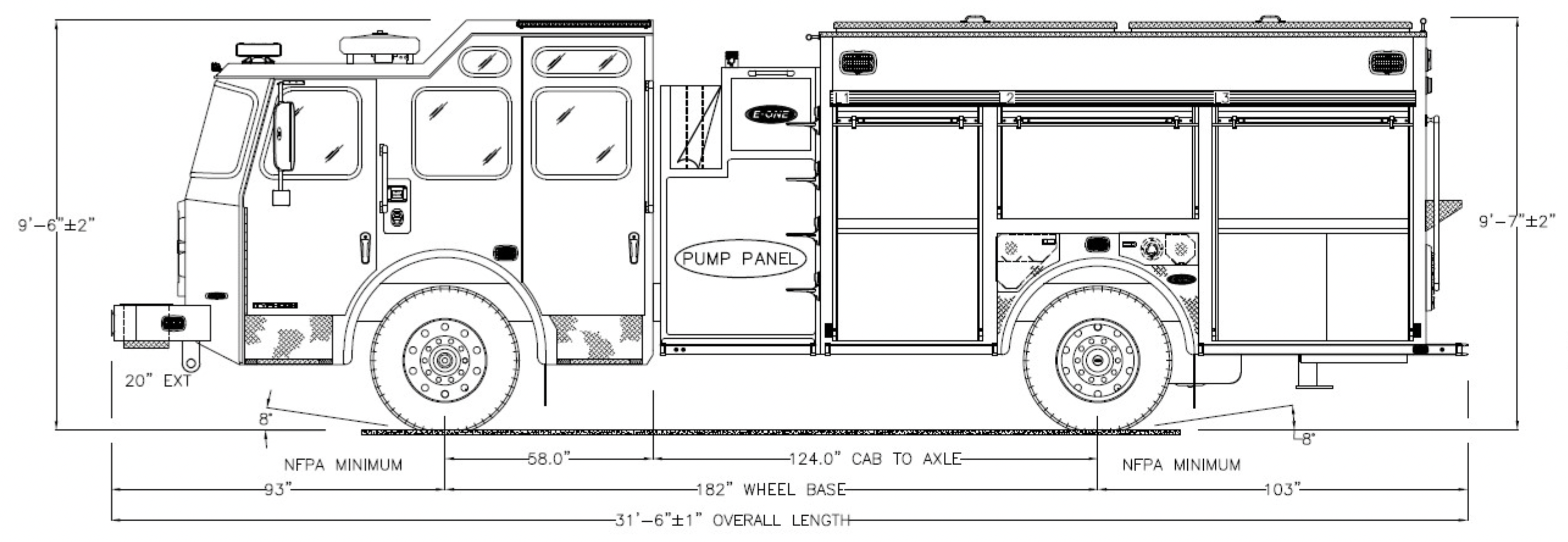

42/56 Low Hose Bed
- Extruded aluminum “flat back” pumper body
- 780 or 1030-gallon tank
- 95” High body with 1030 tank, 85” with 780 tank. Includes storage pan over tank.
- 42” / 56” Wide full height side compartments (shallow uppers)
- Hinged doors or roll-up doors (ROM or AMDOR / satin or painted). Tri-Mark D-Paddles optional
- Low B1 (Transverse); roll-up or hinged doors • 10”, 12” and 16” long tailboard options with folding steps for HB access
- Hose bed covers
- Right side tunnel to hold Duo or Alco 24-2,14 roof, backboard and (2) poles (std or Z-head)
- Diamond plate or inset painted wheel wells with bolt-on polished alum or rubber trim

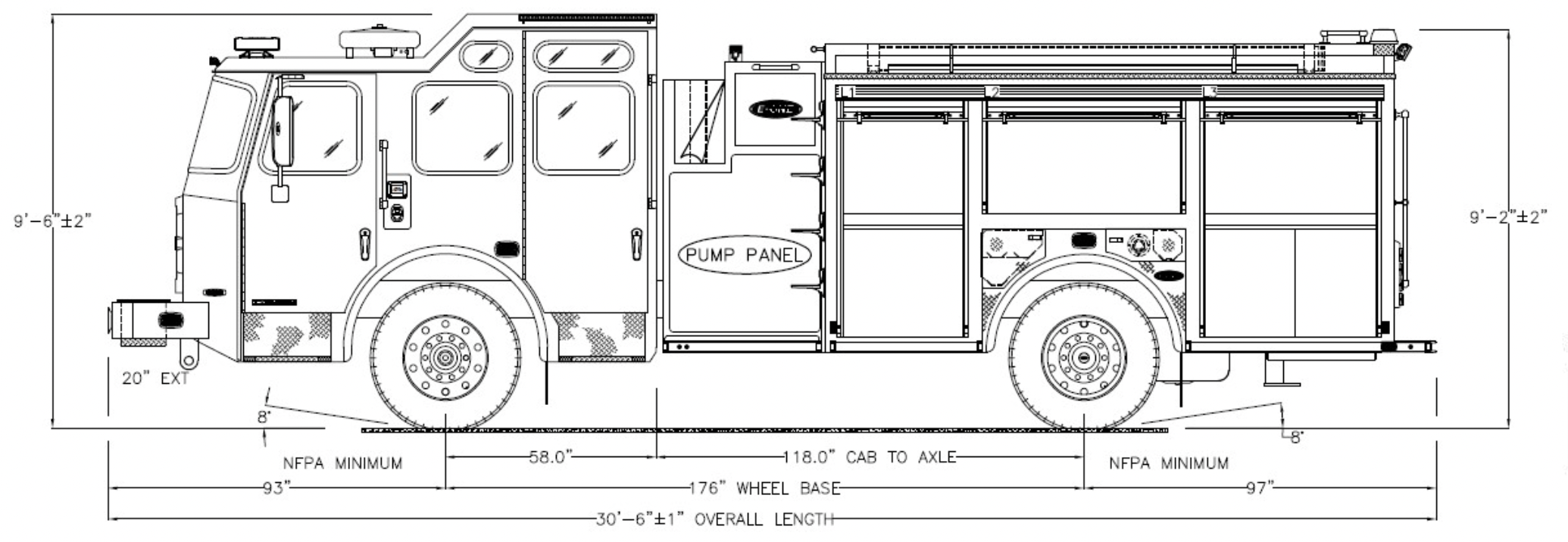

36/50 Low HoseBed – Half Side
- Extruded aluminum “flat back” pumper body
- 530, 780 or 1030-gallon tank
- 80” High body with 530 tank, 85” high with 780 tank, 90” high with 1030 tank. Includes storage pan over tank.
- 36” / 50” Wide compartments; High left side with shallow uppers, half right side
- Hinged doors or roll-up doors on left side (ROM or AMDOR / satin or painted), hinged only on right half side compartments. Tri-Mark D-Paddles optional.
- Low B1 (Transverse); hinged or roll-up door
- 10”, 12” and 16” long tailboard options with folding steps for HB access
- Hosebed covers
- Right side ladder brackets to hold Duo or Alco 24-2, 14 roof, 10’ attic and pike poles
- Diamond plate or inset painted wheel wells with bolt-on polished alum or rubber trim

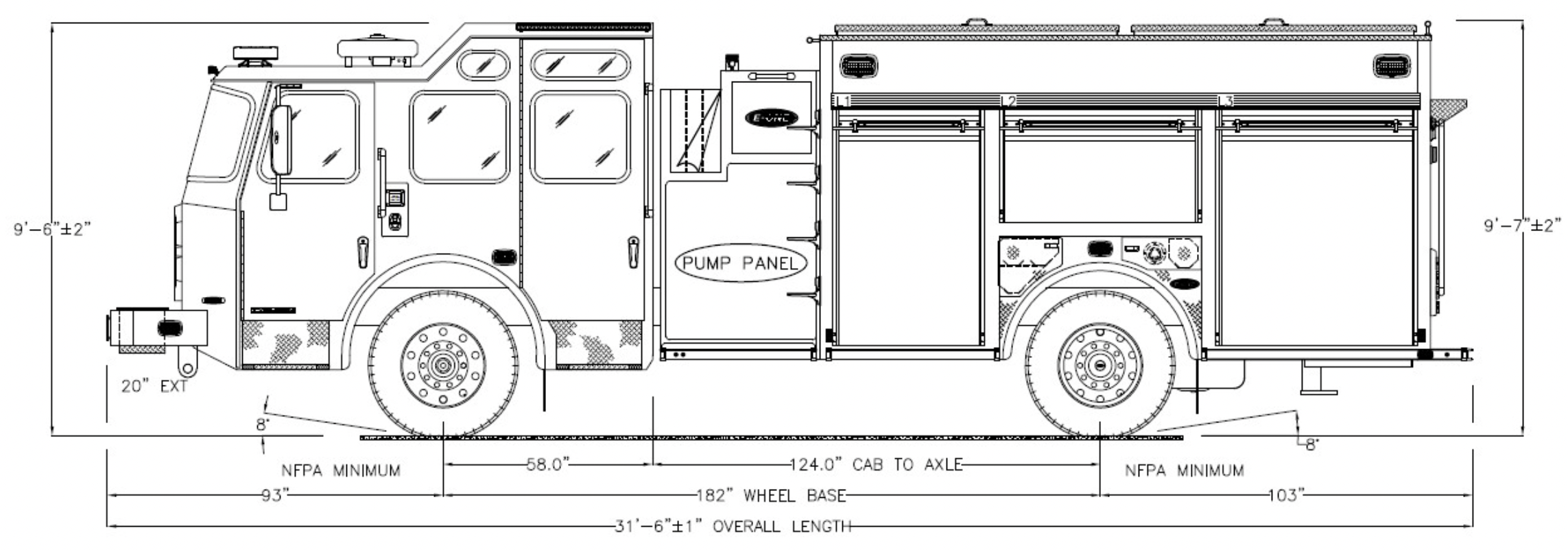

42/56 Rescue
- Extruded aluminum “flat back” rescue pumper body
- 1030-Gallon tank standard, 780 optional (upcharge due to stepped HB)
- 85” or 90” high body with 780 tank, 90” high with 1030 tank.
- 42” / 56” Wide full height side compartments, deep upper on left side
- Tall B1 (Separate compartment) • Hinged doors or roll-up doors (ROM or AMDOR / satin or painted). Tri-Mark D-Paddles optional.
- 10”, 12” and 16” long tailboard options
- Hosebed access: folding steps or pivot out ladder (Zico or Alco-lite)
- Hosebed covers
- Right side tunnel to hold Duo or Alco 24-2,14 roof, backboard and (2) poles (std or Z-head)
- Diamond plate or inset painted wheel wells with bolt-on polished alum or rubber trim

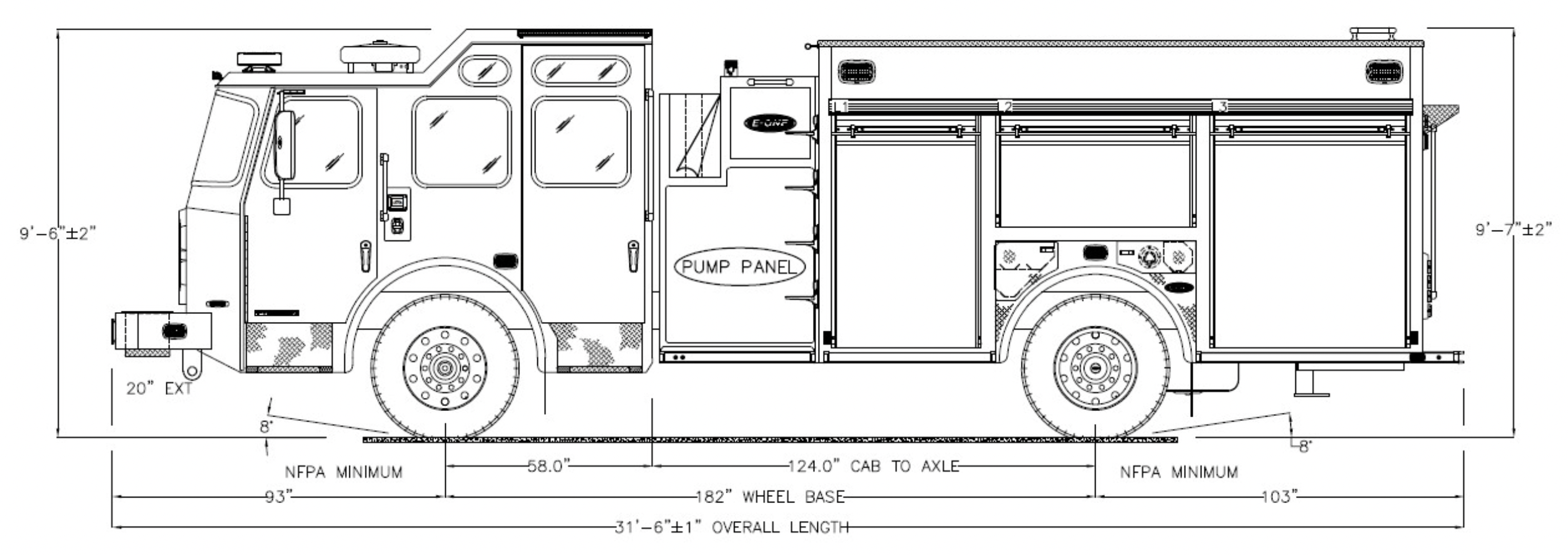

42/56 Full Width Hosebed Rescue
- Extruded aluminum “flat back” rescue pumper body
- 1030-Gallon tank
- 90” High body standard, 95” optional.
- 42” / 56” Wide full height side compartments, deep upper on left side
- Tall B1 (Separate compartment)
- Hinged doors or roll-up doors (ROM or AMDOR / satin or painted). Tri-Mark D-Paddles optional.
- 10”, 12” and 16” long tailboard options
- Hosebed access: folding steps or pivot out ladder (Zico or Alco-lite)
- Hosebed covers – Vinyl top and rear (Standard VM8 style or D&S)
- Right side tunnel to hold Duo or Alco 24-2,14 roof, backboard and (2) poles (std or Z-head)
- Diamond plate or inset painted wheel wells with bolt-on polished alum or rubber trim

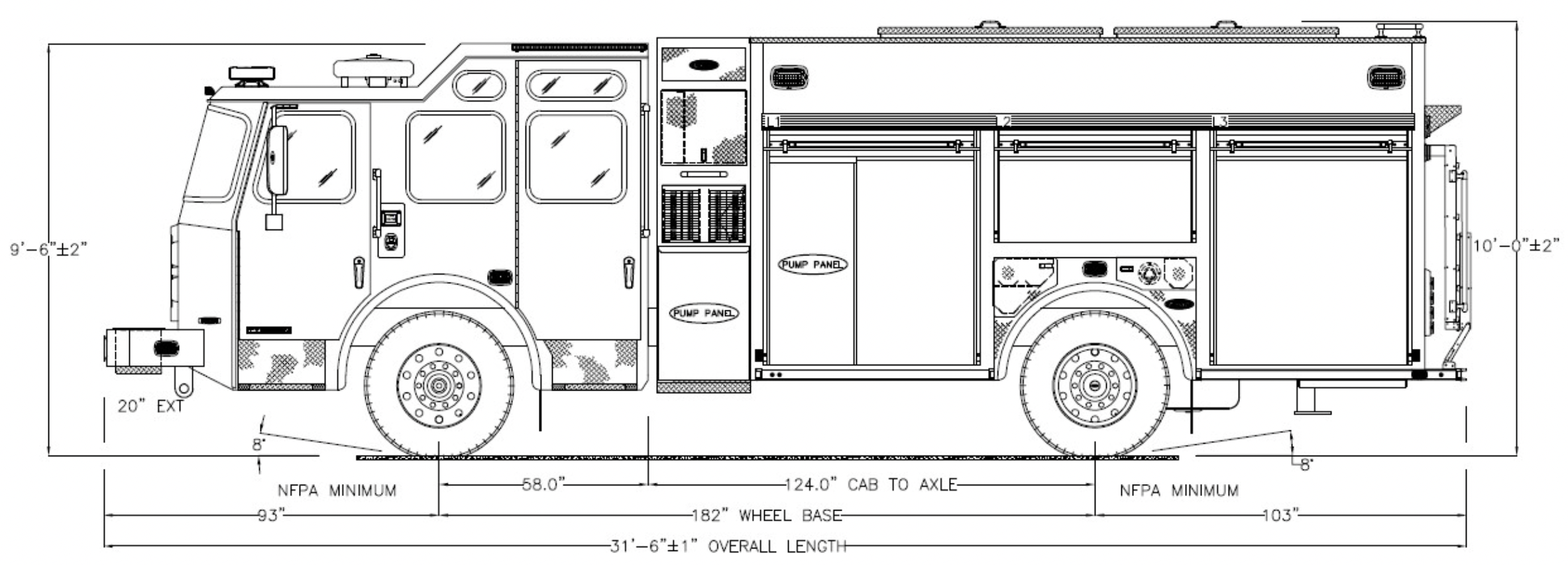

Emax Rescue
- Extruded aluminum “flat back” eMAX rescue pumper body. Front overhang accommodates E-ONE or Qmax-XS pumps and optional roll-up door (+4” in length).
- 780 or 1030-gallon tank
- 90” or 95” body height available with 780 tank. 95” required with 1030 tank.
- 60” / 56” Full height side compartments, deep upper on left side
- Rooftop compartments required, narrow or wide style, top or rear doors. Wide includes rear landing on left side as std. Rear door design will hold HS hose (side by side on left with wide compartments).
- Tall B1 (Separate compartment)
- Roll-up doors (ROM or AMDOR / satin or painted)
- 10”, 12” and 16” long tailboard options
- Hosebed access: Pivot out ladder (Zico or Alco-lite)
- Hosebed covers
- Right side tunnel to hold Duo or Alco 24-2,14 roof, backboard and (2) poles (std or Z-head).
- Diamond plate or painted wheel wells with bolt-on polished alum or rubber trim

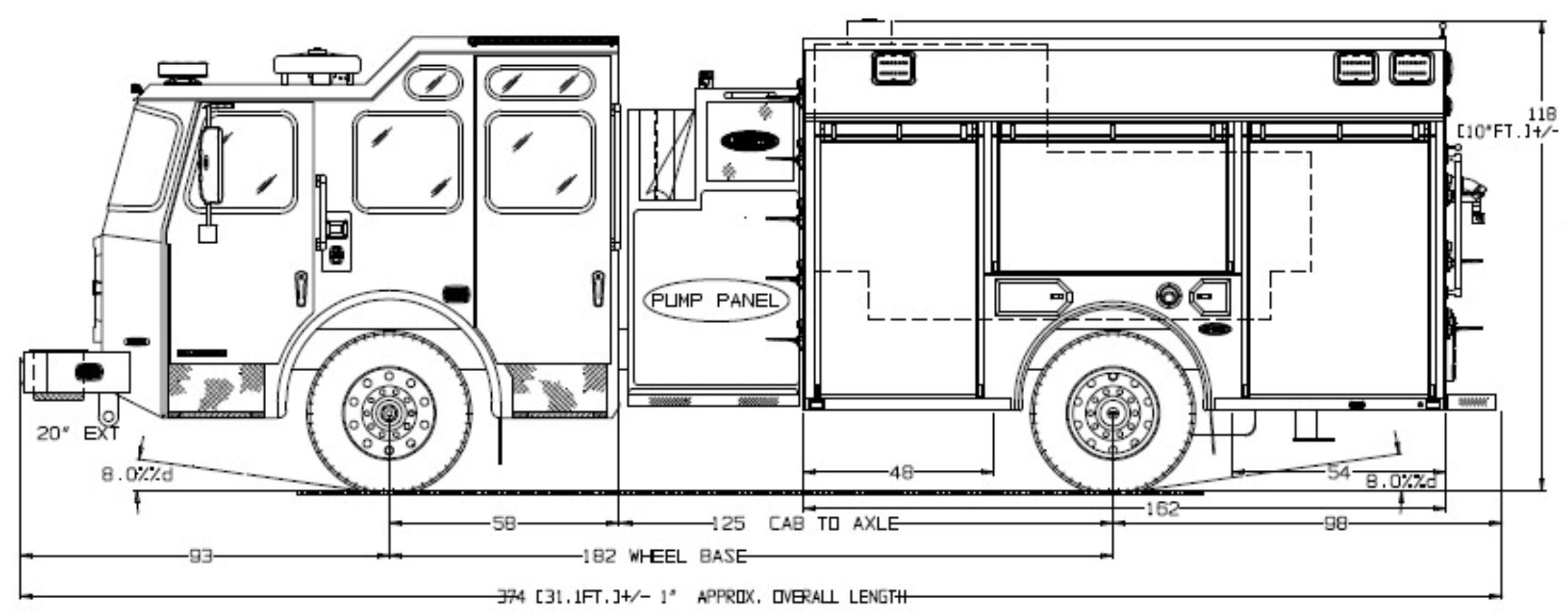

Stainless Steel 48/54 Rescue
- Stainless steel “flat back” rescue pumper body with FRP overlays and full width upper body sides
- 780 or 1030-gallon tank (full height at front)
- Right side tunnel with D-Ring door to hold Duo or Alco 24-2,14 roof, 10’ attic, (2) poles (std or Z-Head) and (2) hard suction hoses.
- 94” High body
- 44” / 50” wide compartment openings with deep upper on left side
- Semi-tall B1 (Separate compartment from sides)
- Roll-up doors only (ROM or AMDOR / satin or painted)
- 12” and 16” long tailboard options (Bustin tread in TB and RB)
- Folding steps for HB access std, right side for storage tunnel access (optional)
- Hosebed covers

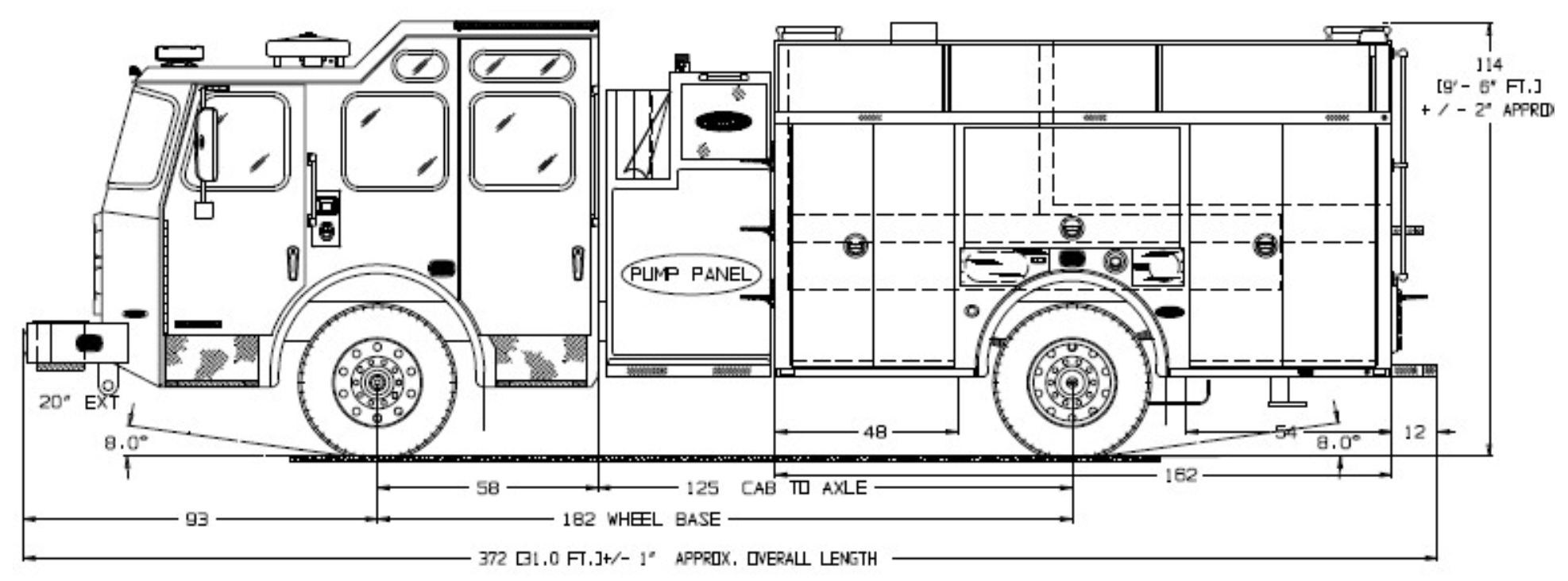

Stainless Steel 48/54 Low Hosebed + Tunnel
- Stainless steel “flat back” pumper body, FRP overlays with roll-up doors.
- 780 or 1030-gallon tank (full height at front)
- Right side tunnel with D-Ring door to hold Duo or Alco 24-2,14 roof, 10’ fldg, backboard and (2) poles (std or Z-head)
- 83” High body with 780 tank, 88” high with 1030 tank.
- 44” / 50” wide compartment openings with full height side compartments (shallow uppers)
- Hinged doors or roll-up doors (ROM or AMDOR / satin or painted)
- Low B1 (separate compartment from sides); roll-up or hinged doors
- 12” and 16” long tailboard options (Bustin tread in TB and RB)
- Folding steps for HB and storage tunnel access (optional)
- Hosebed covers – Vinyl top and rear – Slide / tilt or side hinged dia plt with vinyl or cargo net rear

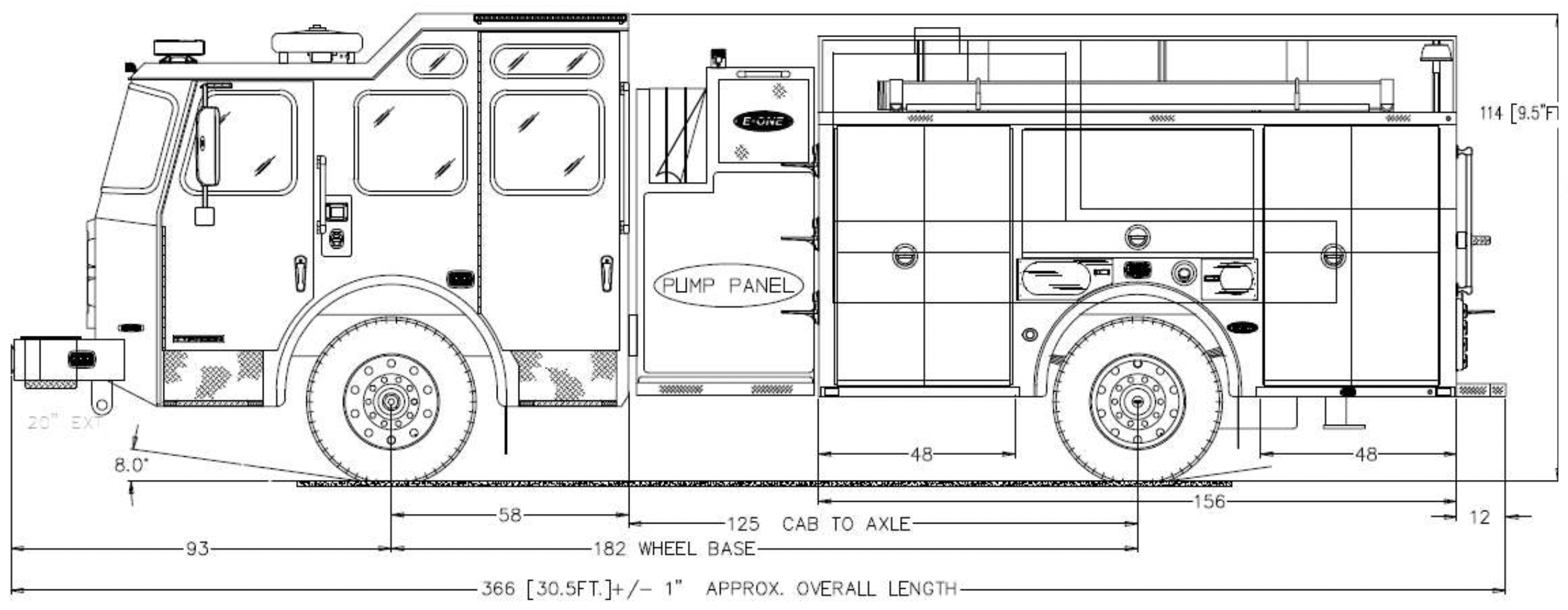

Stainless Steel 48/48 Low Hosebed Half Side
- Stainless steel “flat back” pumper body, FRP overlays with roll-up doors.
- 530, 780 or 1030-gallon tank
- Right side ladder brackets to hold Duo or Alco 24-2, 14 roof, 10’ fldg and pike poles
- 83” High body with 530 or 780 tank, 88” high with 1030 tank.
- 44” / 44” wide compartment openings, high left side with shallow uppers, half right side
- Hinged doors or roll-up doors (ROM or AMDOR / satin or painted).
- Low B1 (separate compartment from sides); roll-up or hinged doors
- 12” and 16” long tailboard options (Bustin tread in TB and RB)
- Folding steps for HB access
- Hosebed covers – Vinyl top and rear – Slide / tilt or side hinged dia plt with vinyl or cargo net rear
Stainless eMax Rescue
- Stainless steel “flat back” eMAX rescue pumper body with FRP overlays and full width upper body sides. Front overhang accommodates E-ONE or Qmax-XS pumps (+4” in length).
- 780 or 1030-gallon tank
- Right side tunnel with D-Ring door to hold Duo or Alco 24-2,14 roof, 10’ fldg and (2) poles (std or Zhead)
- 95” or 100” High body for 1030 tank. 90” or 95” with 780.
- 56” / 50” wide compartment openings with deep upper on left side
- Rooftop compartments required, narrow or wide style, top or rear doors. Wide includes rear landing on left side as std.
- Semi-tall B1 (Separate compartment from sides)
- Roll-up doors (ROM or AMDOR / satin or painted)
- 12” and 16” long tailboard options (Bustin tread in TB and RB)
- Hosebed access: Pivot out ladder (Zico or Alco-lite)
- Hosebed cover; Vinyl top and rear or dia plate (side hinged or slide and tilt with vinyl or cargo net rear)
